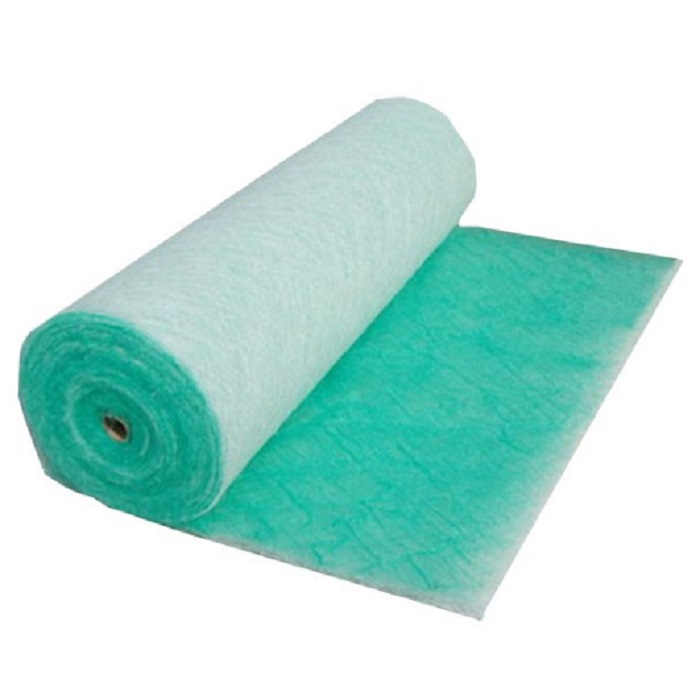

Wholesale Green-White Fiberglass Filter for Paint Spray Booth
Aspect
● Made of huge strength continuous filament fiberglass, arranged evenly and orderly ● It has a very high collecting efficiency ● The original resistance of fluffy fiberglass cotton is little
● The formaldehyde content is fewer than international standard of toddler underwear
● The generation process is unique, exterior is encrypted, and middle structure is three-dimensional help support
Application
The fiberglass cotton can be coiled or cut into pieces to produce customers. It can become framed in metal ( galvanized sheet or aluminum )
Air purification of high temperature places in various market sectors Oil and paint mist filtration for industrial along with civil use.
Technical Parameters
Model | PA-50/60 | PA-100 |
Weight | 240g/㎡ | 320g/㎡ |
Filter Efficiency | 92%-96% | 97%-99% |
Initial resistance | 15Pa | 20Pa |
Final resistance | 250Pa | 280Pa |
Air velocity | 0.7-1.5m/s | 0.7-1.75m/s |
Dust Holding Capacity | 3200-3600g/㎡ | 3600-4900g/㎡ |
Maximum temperature | 170℃ | 170℃ |
Thickness | 50/60mm | 100mm |
Width | 0.8/1.0/2.0m | |
Note: other specifications can be customized according to demand |
