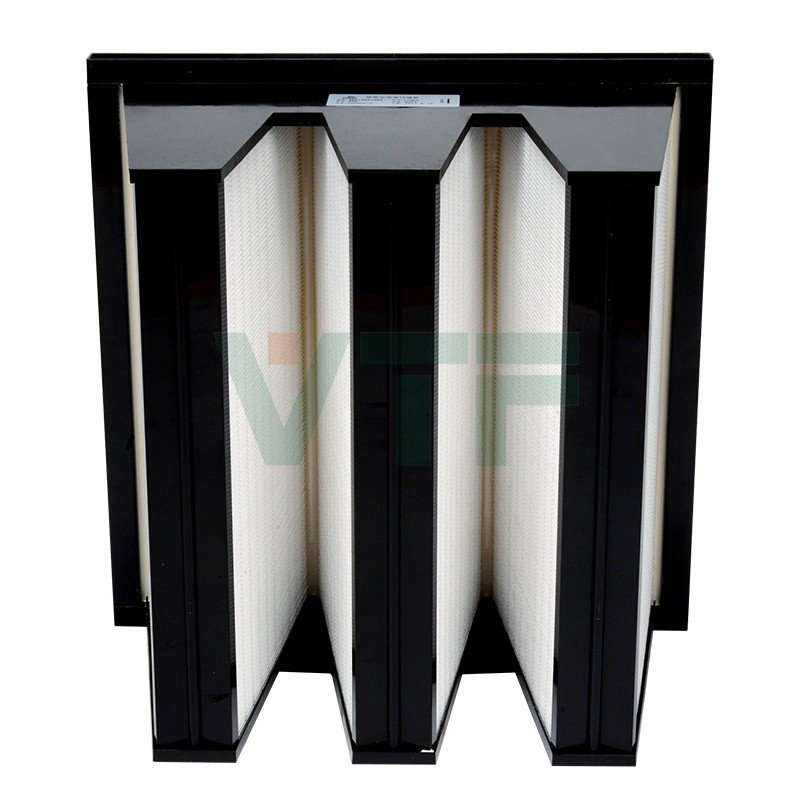

V-Bank Compact filter in all-plastic frame includes a wet-laid ,micro fine fiber media in a unique pleat-in-pleat V-bank design with up to 200 square feet of media area for higher dust-holding capacity, longer system life and a lower average pressure drop to save energy costs,meida is water-resistant.
Advantages:
• Compact construction for large volume flow rates
• Complete plastic components, fully incinerable
• Constructed from recycled materials
• Self-supporting and rigid
• Multi-directional air flow and installation
• High filter surface area offers low pressure drop for energy
savings and longer life.
• Each filter includes a label noting tested efficiency,pressure
drop,rated airflow;
V-Bank Compact filter in all-plastic frame includes a wet-laid ,micro fine fiber media in a unique pleat-in-pleat V-bank design with up to 200 square feet of media area for higher dust-holding capacity, longer system life and a lower average pressure drop to save energy costs,meida is water-resistant.
V-Bank Compact filter in all-plastic frame includes a wet-laid ,micro fine fiber media in a unique pleat-in-pleat V-bank design with up to 200 square feet of media area for higher dust-holding capacity, longer system life and a lower average pressure drop to save energy costs,meida is water-resistant.
Advantages:
• Compact construction for large volume flow rates
• Complete plastic components, fully incinerable
• Constructed from recycled materials
• Self-supporting and rigid
• Multi-directional air flow and installation
• High filter surface area offers low pressure drop for energy
savings and longer life.
• Each filter includes a label noting tested efficiency,pressure
drop,rated airflow;
V-Bank Compact filter in all-plastic frame includes a wet-laid ,micro fine fiber media in a unique pleat-in-pleat V-bank design with up to 200 square feet of media area for higher dust-holding capacity, longer system life and a lower average pressure drop to save energy costs,meida is water-resistant.
Parameters & Material:
- Frame: Plastic
- Media: Fine fiberglass paper or Polypropylene fiber
- Separator: Hot melt
- Sealant: Polyurethane
- Filter Classes M6, F7, F8, F9, H10, H11, H13, H14
- Frame Type: Single Flange or Box Type
- Max.Constant Temperature: 80℃ (170 ℉ )
- Recommended Final Resistance: 500Pa ( 2.0” W.G)
- Flammability: UL Classified
- Relative Humidity: 100%
Parameters & Material:
- Frame: Plastic
- Media: Fine fiberglass paper or Polypropylene fiber
- Separator: Hot melt
- Sealant: Polyurethane
- Filter Classes M6, F7, F8, F9, H10, H11, H13, H14
- Frame Type: Single Flange or Box Type
- Max.Constant Temperature: 80℃ (170 ℉ )
- Recommended Final Resistance: 500Pa ( 2.0” W.G)
- Flammability: UL Classified
- Relative Humidity: 100%
