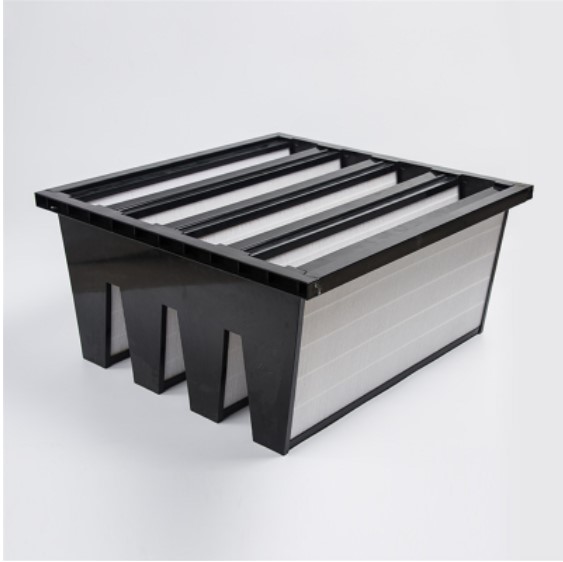

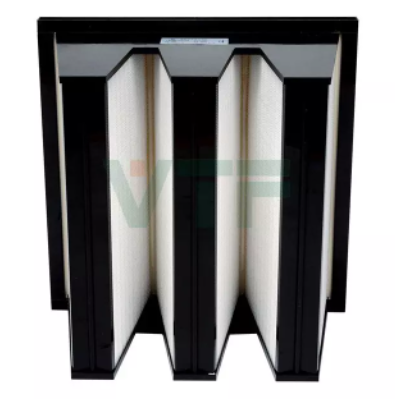

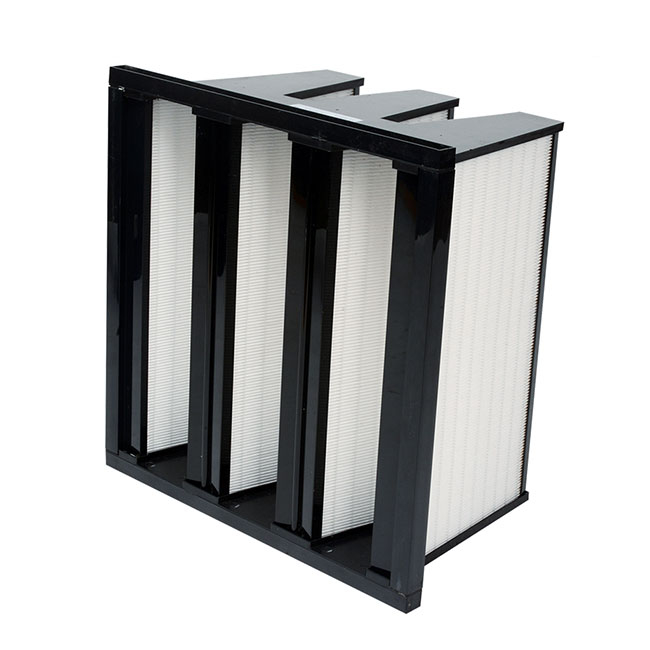

V Bank HEPA Filter
Feature
Compact filter with header frame
V-Shape design with more media area
High airflow and efficiency.
Space saving design concept
Leak Test for all the filters. Space saving design concept
Application
High efficiency final filtration in air conditioning systems and industrial process
Parameter
Actual Size HxWxD (mm) | Filter efficiency | Air Flow /pressure drop (m³/h)/pa | Area(m2) |
592*592*292 | H13 | 3400/250 | 18.13 |
592*287*292 | H13 | 1700/250 | 8.01 |
592*490*292 | H13 | 2700/250 | 14.7 |
592*592*292 | H14 | 3400/280 | 18.13 |
592*287*292 | H14 | 1700/280 | 8.01 |
592*490*292 | H14 | 2700/280 | 14.7 |
